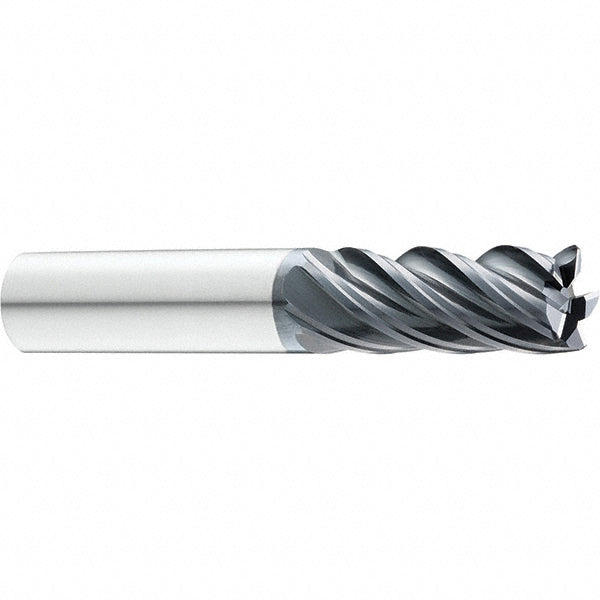

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 38506

SGS

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 38506

MFR# 38506Series Z5S

$98.17List $125.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 38506 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 3 overall length. Series Z5S.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000 to -0.0016 in
Number of flutes5
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
