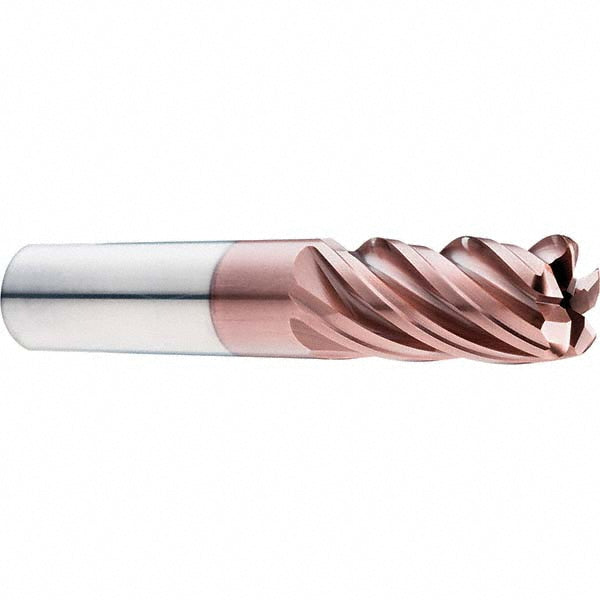

3/16" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - SGS 38526

MFR# 38526Series Z5C

$37.19List $47.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 38526 is a 3/16 5-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. 5/16 length of cut, 2 overall length. Series Z5C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Helix styleMedium

Length of cut in5/16

Length typeRegular

Material gradeMicrograin

Maximum helix angle37

Mill diameter in3/16

Mill diameter tolerance+0.000000 to -0.001200 in

Number of flutes5

Overall length in2

PitchVariable

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle
