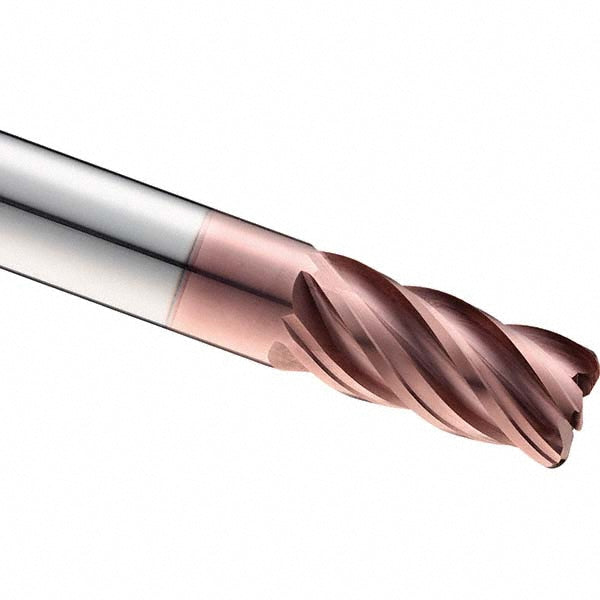

5/16" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 38529

MFR# 38529Series Z5C

$63.86List $81.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 38529 is a 5/16 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/16 length of cut, 2-1/2 overall length. Series Z5C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in7/16

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance-0.0016 to 0.0000 in

Number of flutes5

Overall length in2-1/2

Overall length tolerance+0.0600 to -0.0600 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
