SGS
1/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39003
MFR# 39003Series 1
$18.34List $23.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description

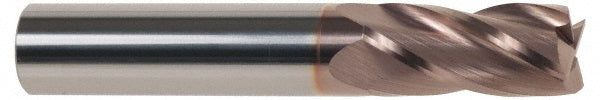

The SGS 39003 is a 1/32 4-flute Solid Carbide (Micrograin) square end mill. 5/64 length of cut, 1-1/2 overall length. Series 1.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/64
Length of cut range0.0000 - 0.1000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
