3/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39005

SGS

3/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39005

MFR# 39005Series 1

$18.70List $23.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

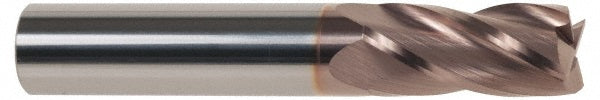

The SGS 39005 is a 3/64 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 7/64 length of cut, 1-1/2 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/64
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
