SGS

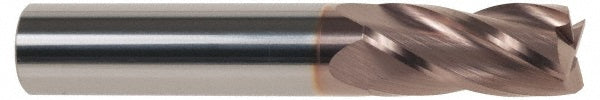

15/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39059

MFR# 39059Series 1

$82.15List $105.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter15/32

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 39059 is a 15/32 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1 length of cut, 3 overall length. Series 1.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeMicrograin

Mill diameter in15/32

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
