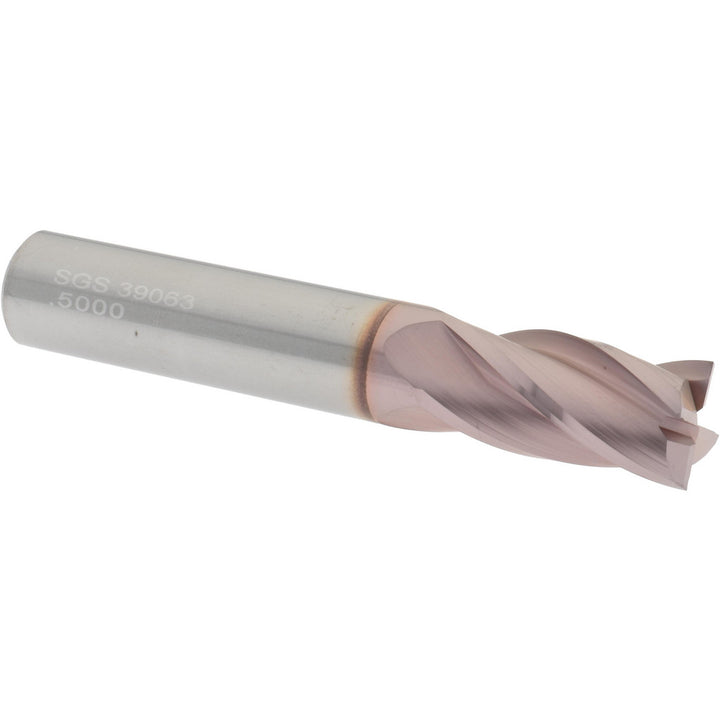

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39063

SGS

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39063

MFR# 39063Series 1

$73.98List $94.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39063 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
