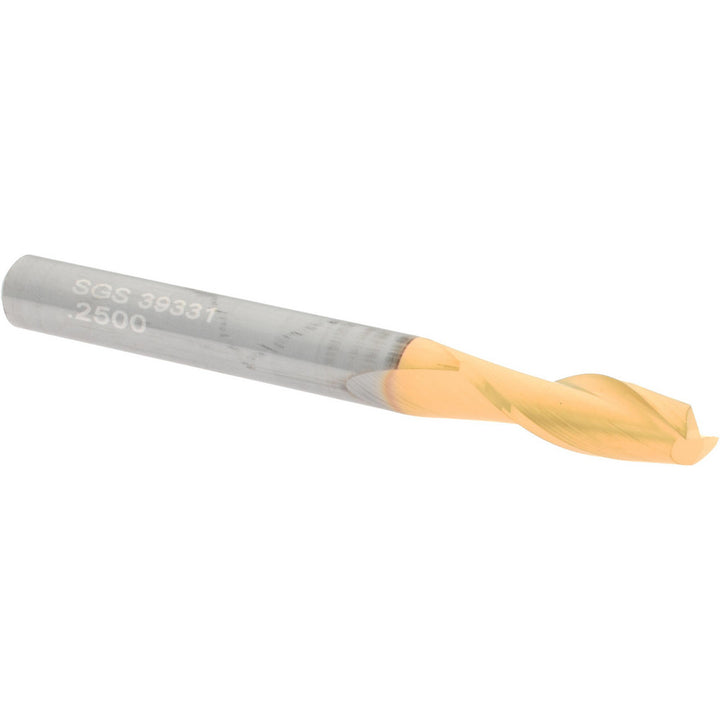

1/4" 2-Flute Solid Carbide Square End Mill, TiN - SGS 39331

SGS

1/4" 2-Flute Solid Carbide Square End Mill, TiN - SGS 39331

MFR# 39331Series 3

$26.58List $34.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingTiN

Description

The SGS 39331 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
