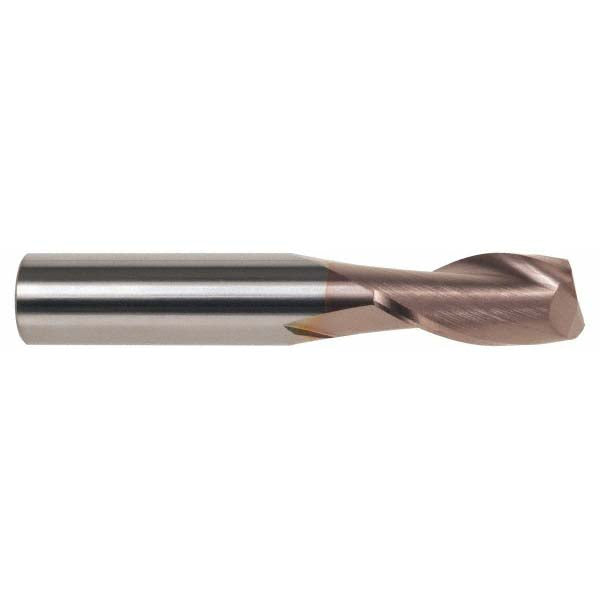

1/64" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39501

SGS

1/64" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39501

MFR# 39501Series 3

$34.40List $44.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/64
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39501 is a 1/64 2-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1/32 length of cut, 1-1/2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/32
Length of cut range0.0000 - 0.1000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
