SGS

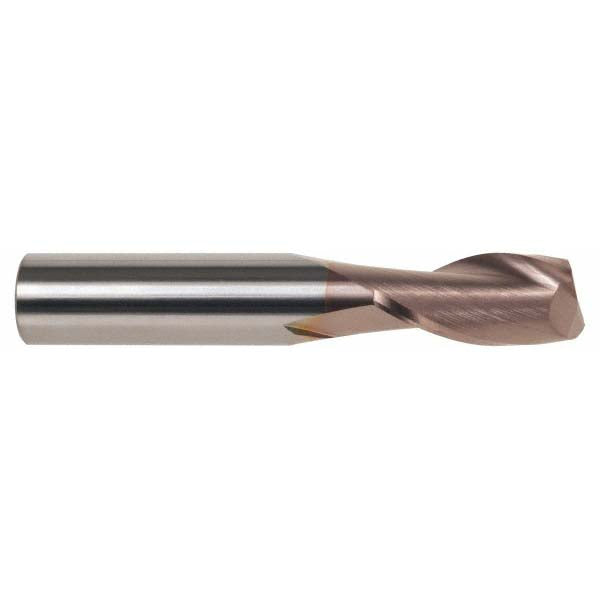

7/64" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39513

MFR# 39513Series 3

$16.35List $20.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/64

Flutes2

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 39513 is a 7/64 2-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 3/8 length of cut, 1-1/2 overall length. Series 3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in7/64

Mill diameter tolerance+0.000/-0.002 in

Number of flutes2

Overall length in1-1/2

Shank diameter in1/8

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
