11/64" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39521

SGS

11/64" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39521

MFR# 39521Series 3

$22.92List $29.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/64
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

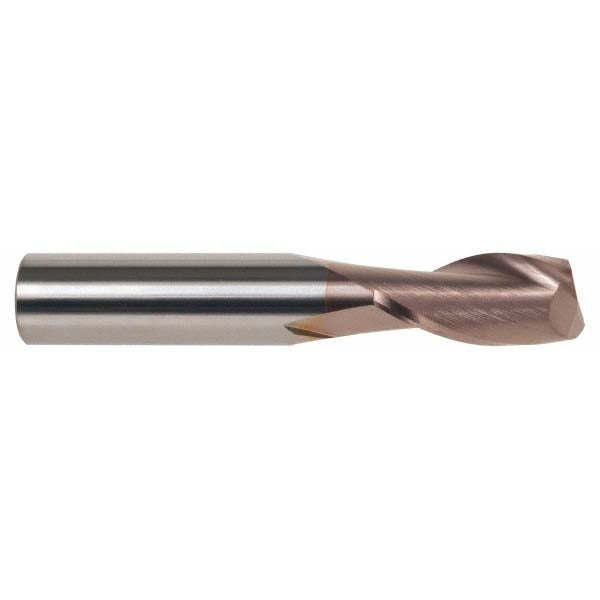

The SGS 39521 is a 11/64 2-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in11/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
