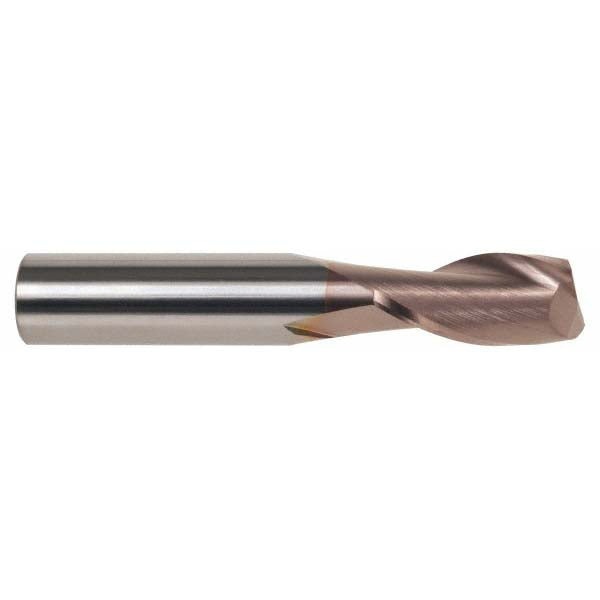

9/16" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39565

SGS

9/16" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39565

MFR# 39565Series 3

$123.76List $158.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39565 is a 9/16 2-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3-1/2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
