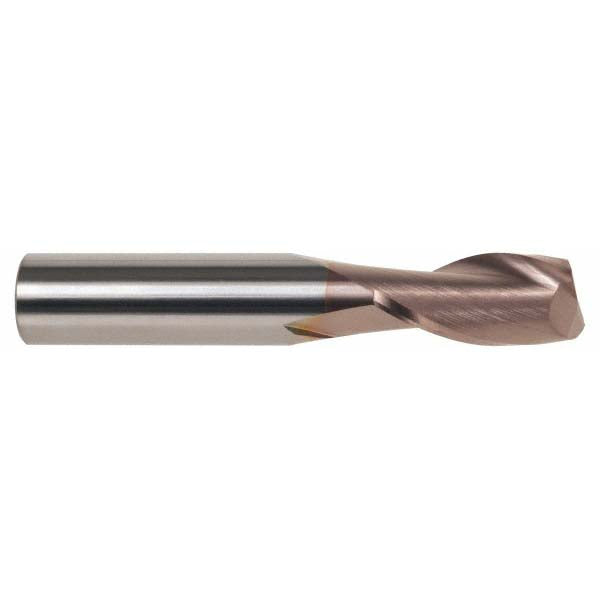

1" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39575

SGS

1" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39575

MFR# 39575Series 3

$314.84List $403.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39575 is a 1 2-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in4
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel1" 2-Flute High Speed Steel Square End Mill, TiCN - Hertel EF99921313 $86.76 Cleveland1" 2-Flute High Speed Steel Square End Mill - Cleveland C41642 $96.22 Cleveland1" 2-Flute High Speed Steel Drill Mill End Mill - Cleveland C40505 $307.77 M.A. Ford.1" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 12110000 $390.47
