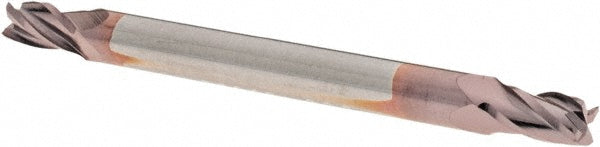

7/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39611

SGS

7/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39611

MFR# 39611Series 14

$25.02List $32.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39611 is a 7/64 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeStub
Material gradeMicrograin
Mill diameter in7/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
