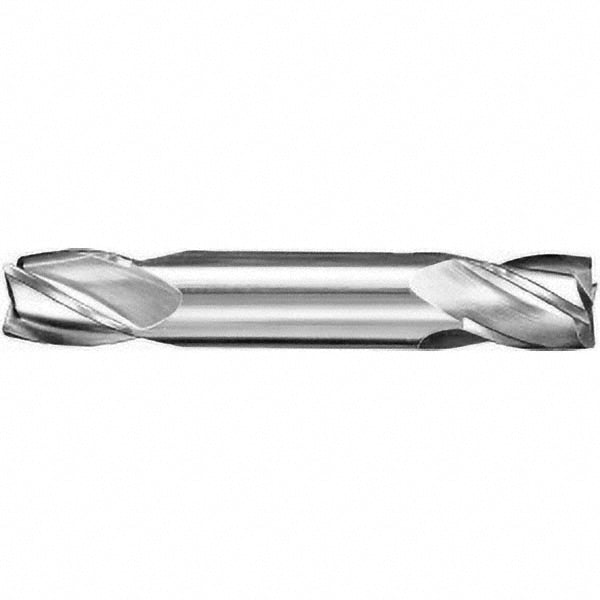

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39635

SGS

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39635

MFR# 39635Series 14

$57.40List $73.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39635 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 9/16 length of cut, 2-1/2 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
