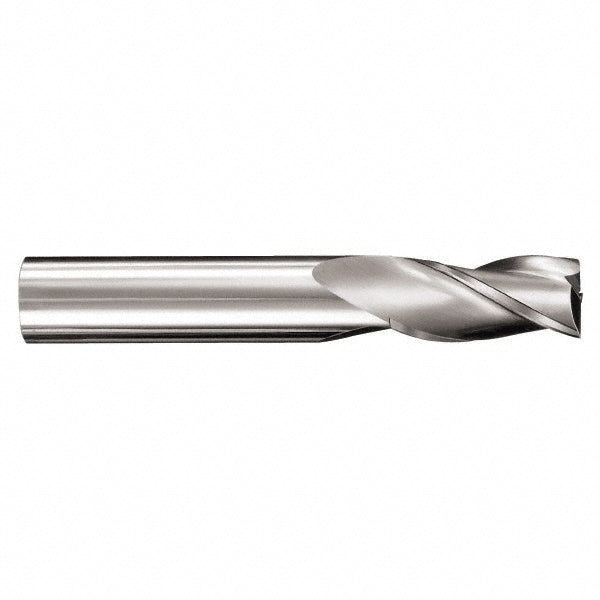

3/4" 3-Flute Solid Carbide Square End Mill, TiN - SGS 39771

MFR# 39771Series 5

$205.34List $263.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingTiN

Description

The SGS 39771 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series 5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes3

Overall length in4

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
