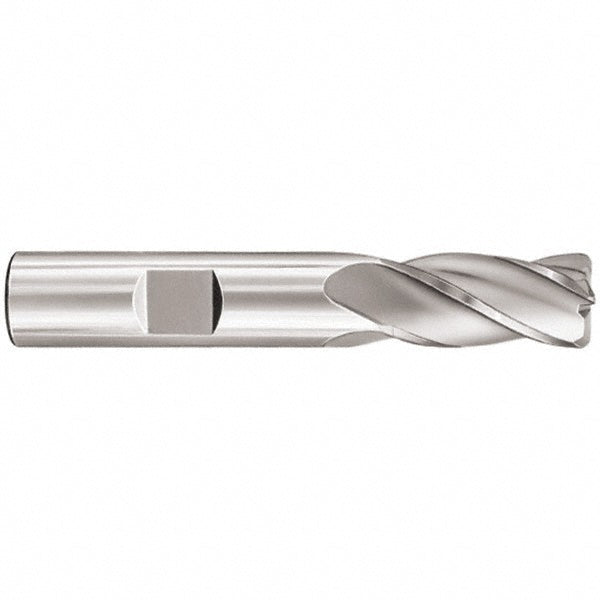

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 40015

SGS

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 40015

MFR# 40015Series 01C

$42.24List $54.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 40015 is a 0.3150in 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series 01C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0197
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut1.6250in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.3150in
Mill diameter tolerance-0.0508/0.0000 mm
Number of flutes4
Overall length (mm)63.00mm
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter (mm)8.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
