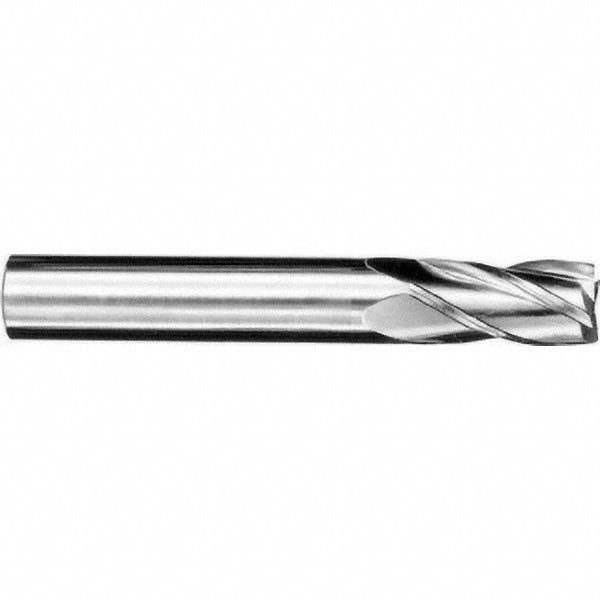

0.1575" 4-Flute Solid Carbide Square End Mill - SGS 40129

SGS

0.1575" 4-Flute Solid Carbide Square End Mill - SGS 40129

MFR# 40129Series 1M

$19.29List $24.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 40129 is a 0.1575 4-flute Solid Carbide (Micrograin) square end mill. 0.5512 length of cut. Series 1M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1575
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)50
Shank diameter0.1575
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
