SGS

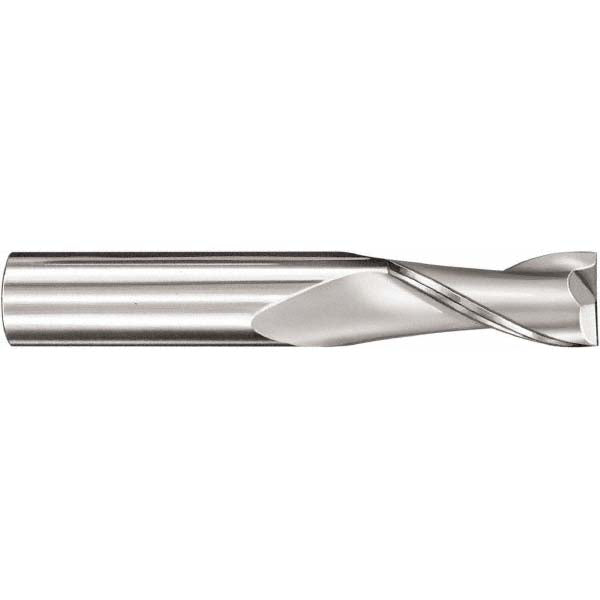

0.0787" 2-Flute Solid Carbide Square End Mill - SGS 40313
MFR# 40313Series 3M
$18.47List $23.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The SGS 40313 is a 0.0787 2-flute Solid Carbide (Micrograin) square end mill. 0.248 length of cut. Series 3M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.248
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0787
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
