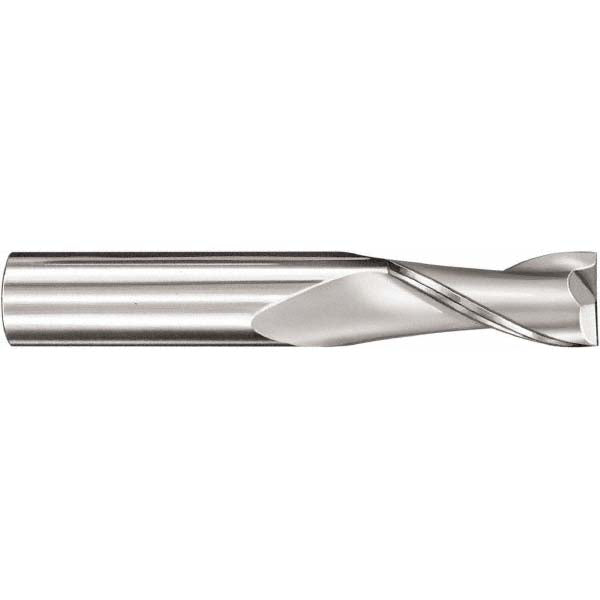

0.1575" 2-Flute Solid Carbide Square End Mill - SGS 40329
MFR# 40329Series 3M
$18.78List $24.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 40329 is a 0.1575 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 0.5512 length of cut. Series 3M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1575
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)50.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter0.1575
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
