0.2362" 2-Flute Solid Carbide Square End Mill - SGS 40341

SGS

0.2362" 2-Flute Solid Carbide Square End Mill - SGS 40341

MFR# 40341Series 3

$23.64List $30.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

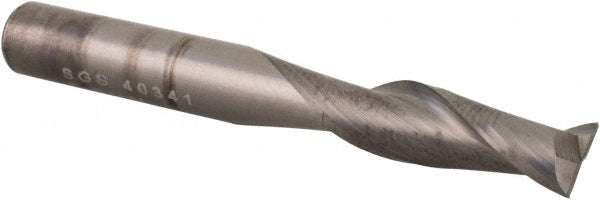

The SGS 40341 is a 0.2362 2-flute Solid Carbide (Micrograin) square end mill. 0.748 length of cut. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.748
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)50
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
