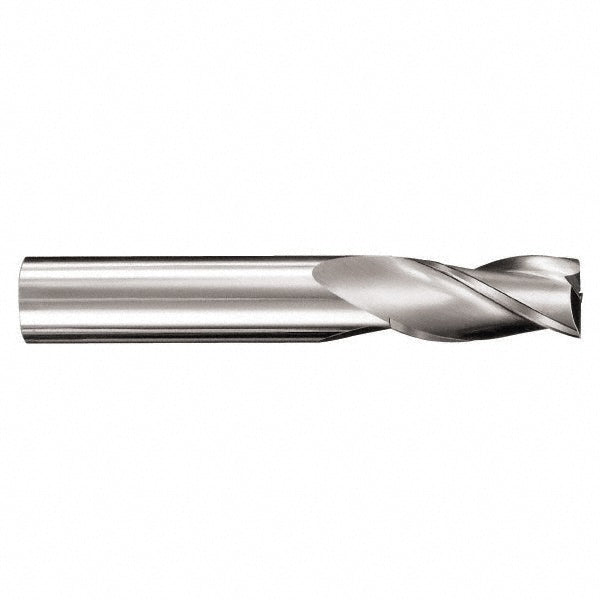

0.0394" 3-Flute Solid Carbide Square End Mill - SGS 40505
MFR# 40505Series 5M
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The SGS 40505 is a 0.0394 3-flute Solid Carbide (Micrograin) square end mill. 0.1575 length of cut. Series 5M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1575
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0394
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes3
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
