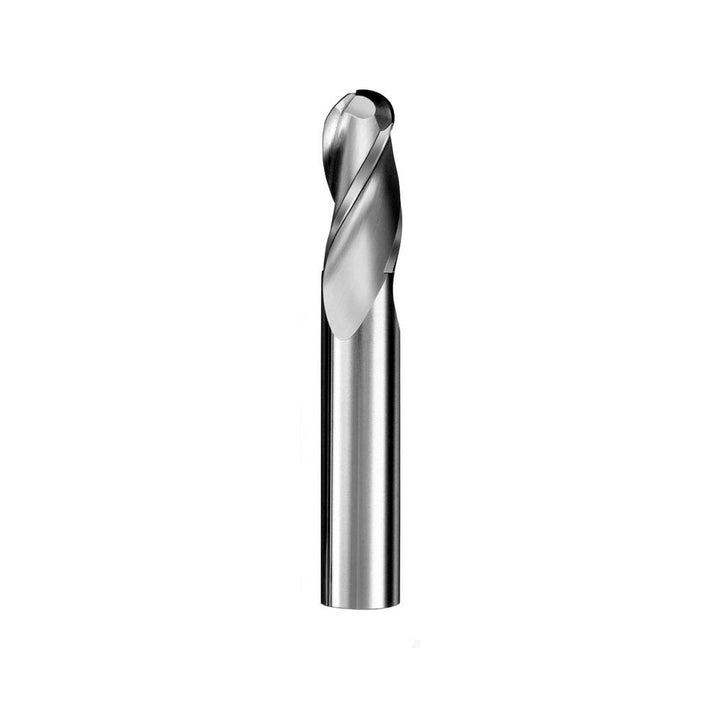

0.1181" 3-Flute Solid Carbide Ball End Mill - SGS 40522
MFR# 40522Series 5MB
$15.96List $20.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The SGS 40522 is a 0.1181 3-flute Solid Carbide (Micrograin) ball end mill. Series 5MB.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)12.00
Length typeRegular
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000 to -0.050 mm
Number of flutes3
Overall length (mm)38.00
Shank diameter (mm)3.00
Shank diameter tolerance0.000 to -0.006 mm
Single or double endSingle
Variable helixNo
Variable indexNo
