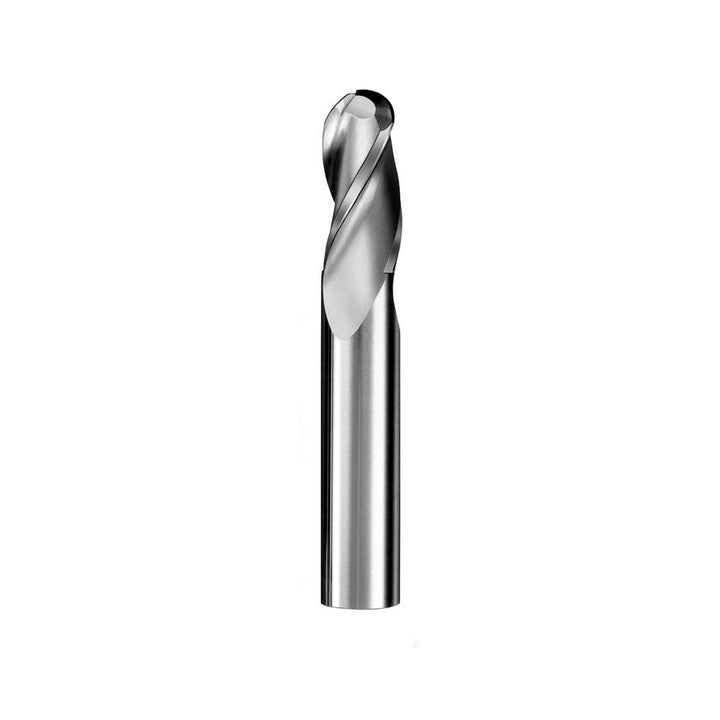

0.1575" 3-Flute Solid Carbide Ball End Mill - SGS 40530

MFR# 40530Series 05B

$21.26List $27.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 40530 is a 0.1575 3-flute Solid Carbide (Micrograin) ball end mill. Suited for hardened materials, cast iron, stainless steel, aluminum & non-ferrous, steel, high-temp alloy. 0.5512 length of cut. Series 05B.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.5512

Length typeStandard

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes3

Overall length (mm)50.00

Primary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel; High-Temp Alloy

Shank diameter (mm)4.00

Shank diameter tolerance0.000/-0.008 mm

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
