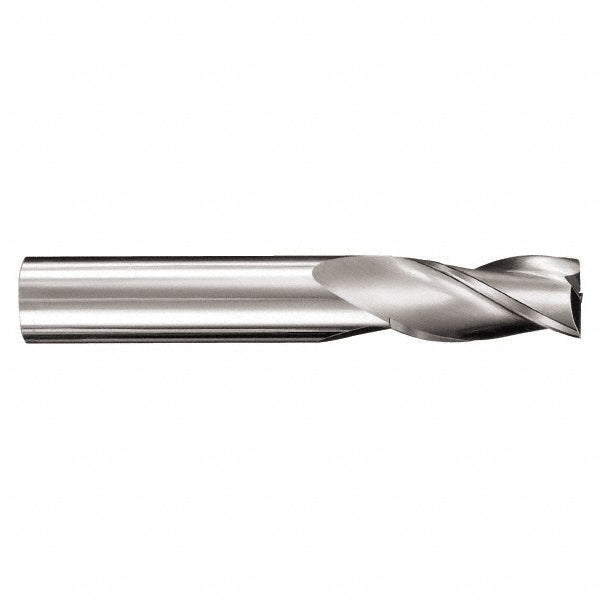

0.1772" 3-Flute Solid Carbide Square End Mill - SGS 40533

SGS

0.1772" 3-Flute Solid Carbide Square End Mill - SGS 40533

MFR# 40533Series 5M

$20.68List $26.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 40533 is a 0.1772 3-flute Solid Carbide (Micrograin) square end mill. 0.6299 length of cut. Series 5M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.6299
Length typeRegular
Material gradeMicrograin
Mill diameter0.1772
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes3
Overall length (mm)50
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
