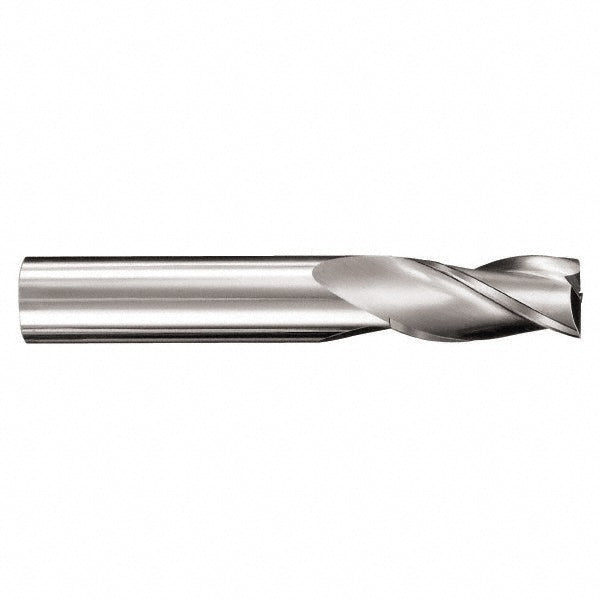

0.3543" 3-Flute Solid Carbide Square End Mill - SGS 40553

SGS

0.3543" 3-Flute Solid Carbide Square End Mill - SGS 40553

MFR# 40553Series 5M

$44.76List $57.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 40553 is a 0.3543 3-flute Solid Carbide (Micrograin) square end mill. 0.8661 length of cut. Series 5M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.8661
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3543
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes3
Overall length (mm)75
Shank diameter0.3937
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
