SGS
0.1181" 2-Flute Solid Carbide Square End Mill - SGS 41721
MFR# 41721Series 17M
$12.46List $15.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description

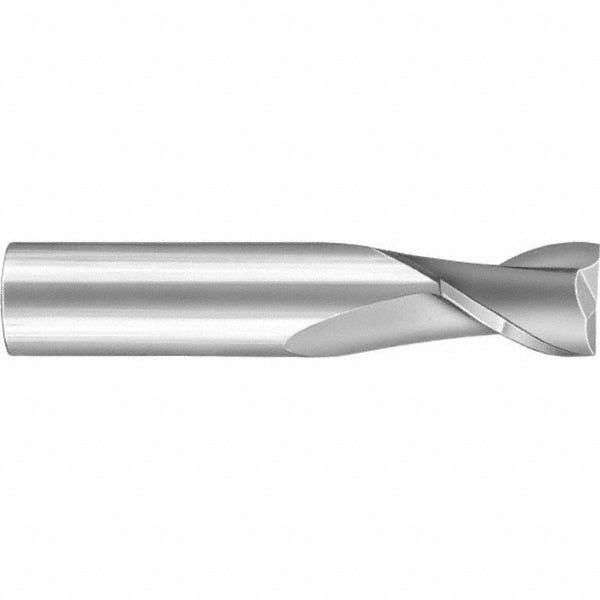

The SGS 41721 is a 0.1181 2-flute Solid Carbide (Micrograin) square end mill. 0.2362 length of cut. Series 17M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.2362
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
