SGS

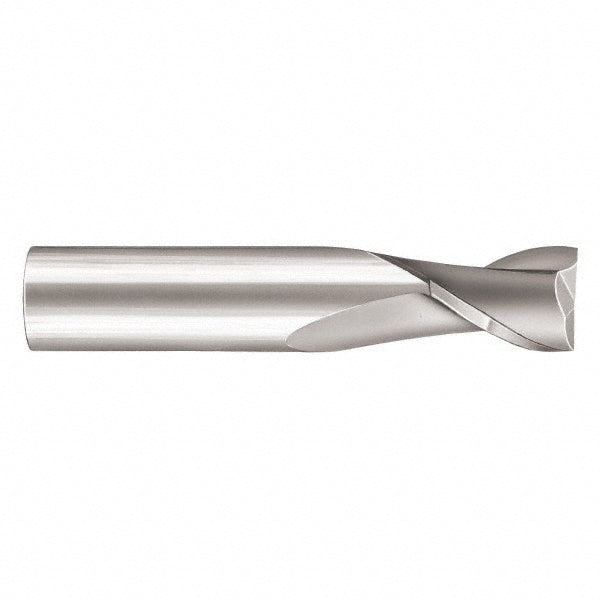

0.2362" 2-Flute Solid Carbide Square End Mill - SGS 41741
MFR# 41741Series 17M
$20.01List $25.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 41741 is a 0.2362 2-flute Solid Carbide (Micrograin) square end mill. 0.4724 length of cut. Series 17M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)50
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
