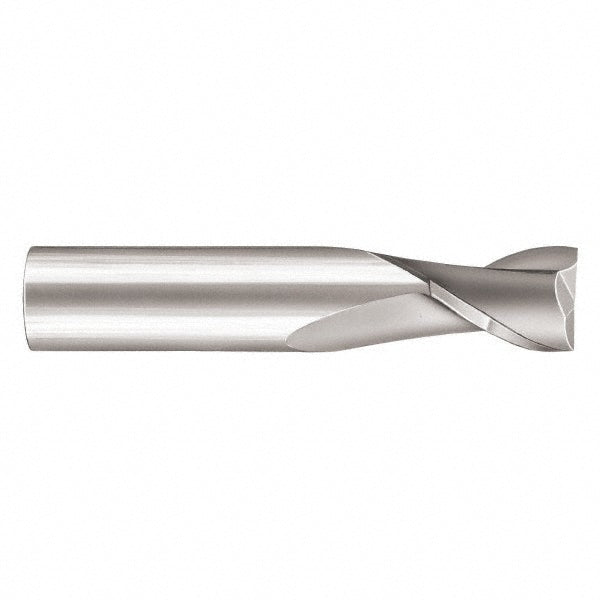

0.4724" 2-Flute Solid Carbide Square End Mill - SGS 41765
MFR# 41765Series 17M
$60.96List $78.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The SGS 41765 is a 0.4724 2-flute Solid Carbide (Micrograin) square end mill. 0.748 length of cut. Series 17M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.748
Length of cut range0.7000 - 0.8000
Length typeStub
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)63
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
