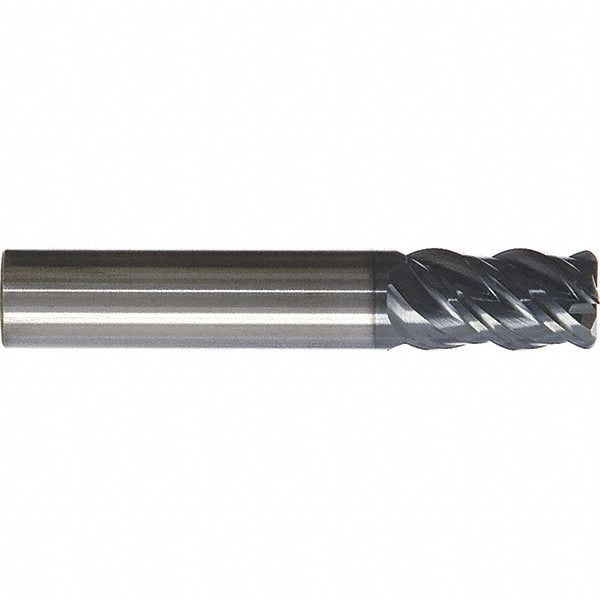

4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 42735

SGS

4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 42735

MFR# 42735Series ZPMC

$202.06List $259.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 42735 is a 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series ZPMC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.1575
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut0.5906
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter (mm)16.00
Mill diameter tolerance-0.0508 to 0.0000 mm
Neck diameter (mm)15.49
Number of flutes4
Overall length (mm)92.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length (mm)42.00
Secondary workpiece materialHard Material
Shank diameter (mm)16.00
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
