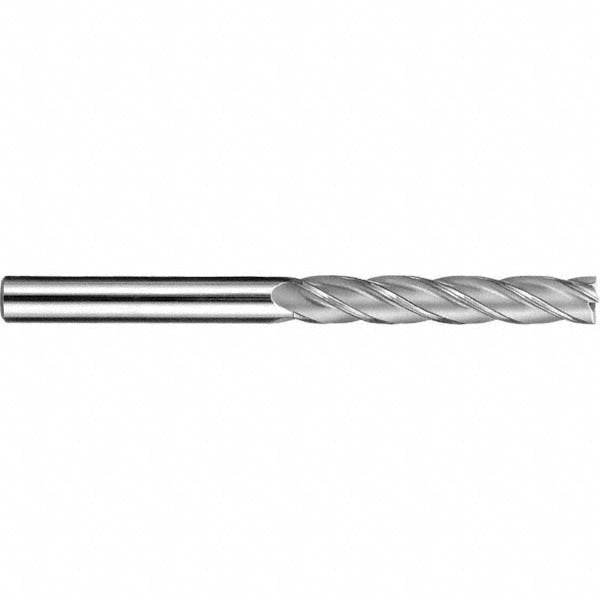

0.3150" 4-Flute Solid Carbide Square End Mill - SGS 43115

SGS

0.3150" 4-Flute Solid Carbide Square End Mill - SGS 43115

MFR# 43115Series 1XLM

$45.02List $57.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 43115 is a 0.3150 4-flute Solid Carbide (Micrograin) square end mill. 0.9843 length of cut. Series 1XLM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.9843
Length of cut range0.8000 - 1.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.3150
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)75
Shank diameter0.315
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
