SGS

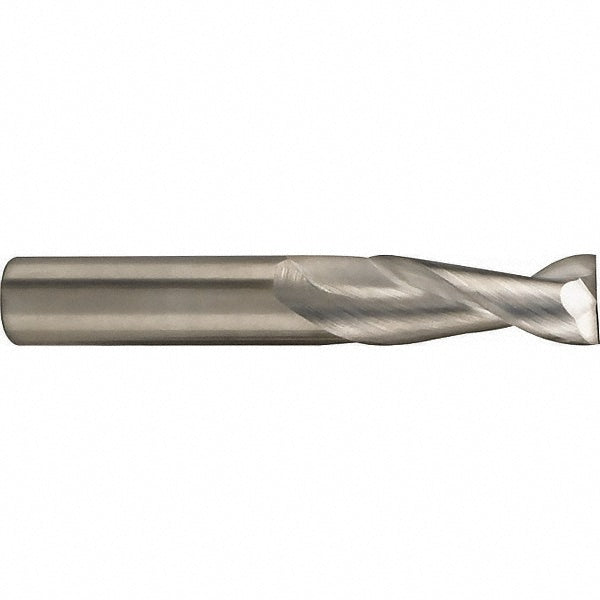

0.1969" 2-Flute Solid Carbide Square End Mill - SGS 44552
MFR# 44552Series 47M
$28.16List $36.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The SGS 44552 is a 0.1969 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.5118 length of cut. Series 47M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut0.5118
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.0025/-0.0100 mm
Number of flutes2
Overall length (mm)50
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1969
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
