SGS

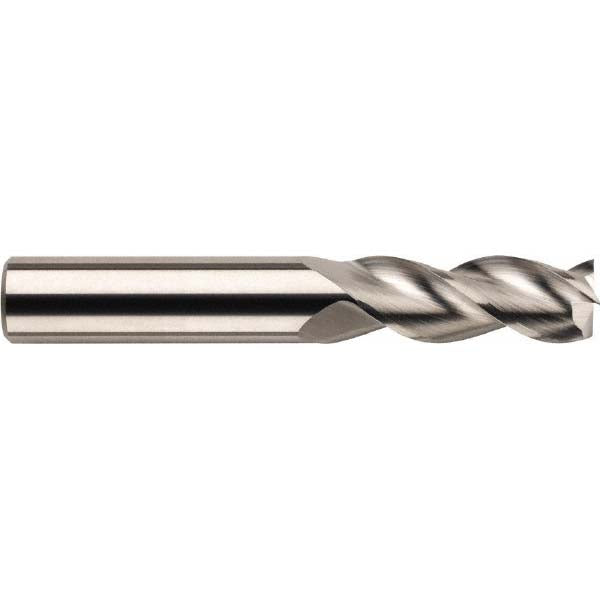

0.3937" 3-Flute Solid Carbide Square End Mill - SGS 44705
MFR# 44705Series 43M
$67.34List $86.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The SGS 44705 is a 0.3937 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.8661 length of cut. Series 43M.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.8661
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3937
Mill diameter tolerance+0.000/-0.009 mm
Number of flutes3
Overall length (mm)72
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3937
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
