SGS
0.2362" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44715
MFR# 44715Series 43M
$39.84List $51.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2
Description

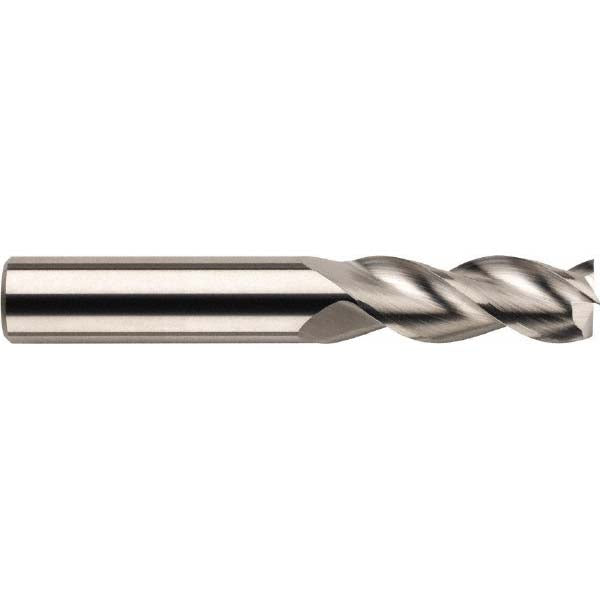

The SGS 44715 is a 0.2362 3-flute Solid Carbide (Micrograin) square end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 0.5118 length of cut. Series 43M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.5118
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.008 mm
Number of flutes3
Overall length (mm)57
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
