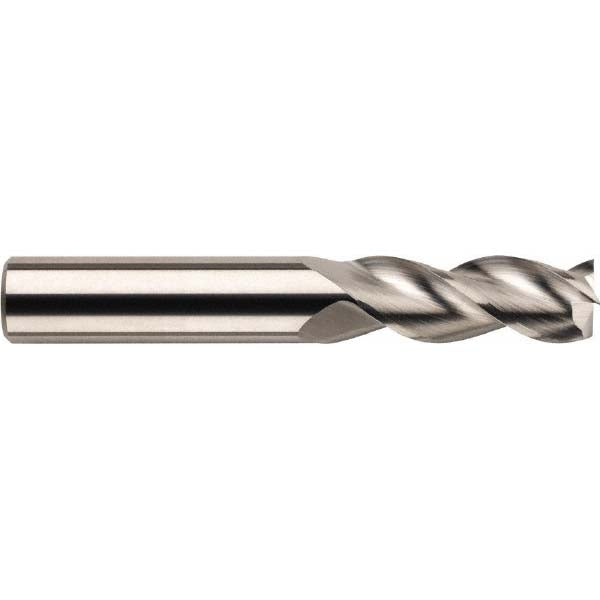

0.4724" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44722
MFR# 44722Series 43M
$93.39List $119.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 44722 is a 0.4724 3-flute Solid Carbide (Micrograin) square end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1.0236 length of cut. Series 43M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut1.0236
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.000/-0.011 mm
Number of flutes3
Overall length (mm)83
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
