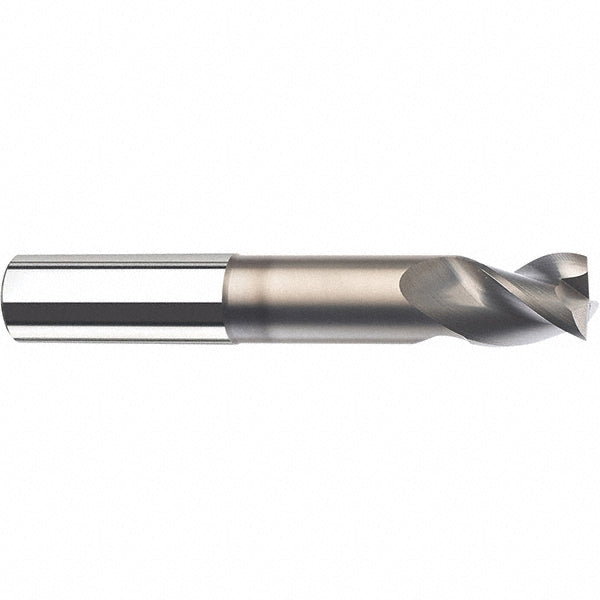

3-Flute Solid Carbide Corner Radius End Mill - SGS 44834
MFR# 44834Series 43ML
$176.72List $222.71
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description
The SGS 44834 is a 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. Series 43ML.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.1575
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut0.2500
Length typeShort
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter (mm)12.00
Mill diameter tolerance-0.0110 to 0.0000 mm
Neck diameter (mm)11.48
Number of flutes3
Overall length (mm)100.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)39.88
Shank diameter (mm)12.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
