SGS

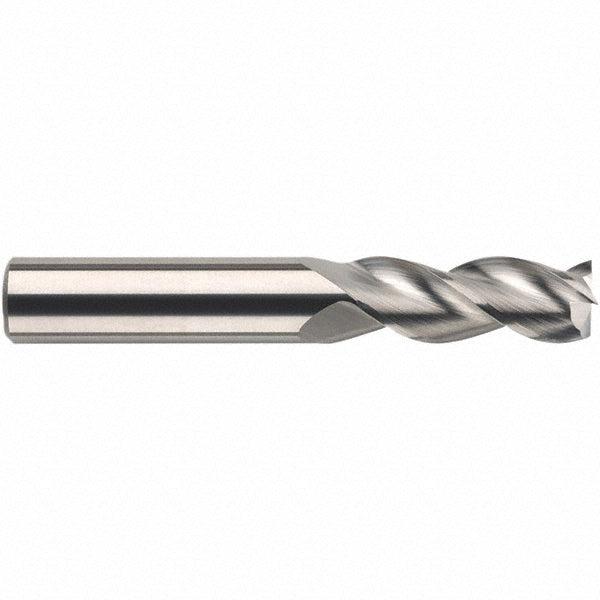

0.1181" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44890

MFR# 44890Series 43MS

$48.04List $61.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 44890 is a 0.1181 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.315 length of cut. Series 43MS.

Specifications

CentercuttingYes

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut0.315

Length typeRegular

Material gradeMicrograin

Mill diameter0.1181

Mill diameter tolerance+0.000 to -0.008 mm

Number of flutes3

Overall length (mm)52

Primary workpiece materialNon-Ferrous Metal

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
