SGS

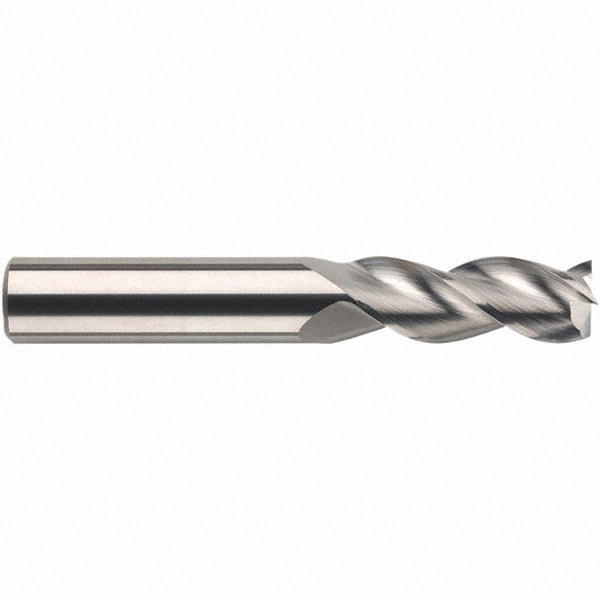

0.6299" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44900
MFR# 44900Series 43MS
$318.39List $401.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 44900 is a 0.6299 3-flute Solid Carbide (Micrograin) square end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. Series 43MS.
Specifications
CentercuttingYes
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut (mm)64
Length typeRegular
Material gradeMicrograin
Mill diameter0.6299
Mill diameter tolerance+0.0000 to -0.0110 mm
Number of flutes3
Overall length (mm)125
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.6299
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
