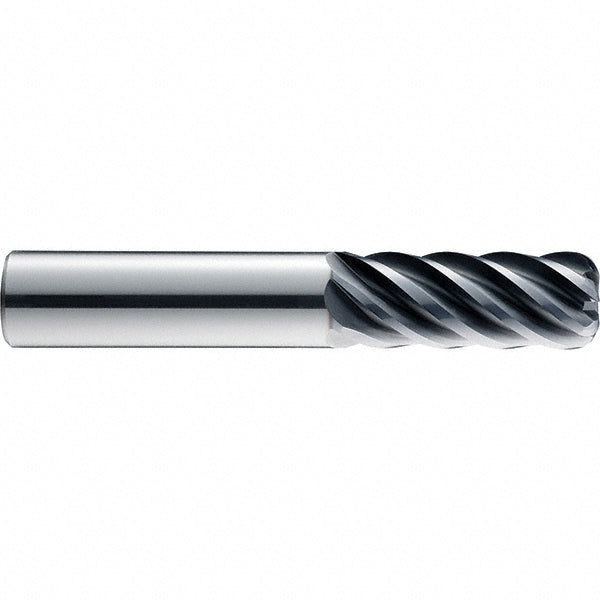

6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 45186

SGS

6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 45186

MFR# 45186Series 51CR

$352.39List $451.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingTX

Description

The SGS 45186 is a 6-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 51CR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.1969
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut0.5118
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeFinishing
Mill diameter (mm)20.00
Mill diameter tolerance-0.0508 to 0.0000 mm
Number of flutes6
Overall length (mm)104.00
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter (mm)20.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
