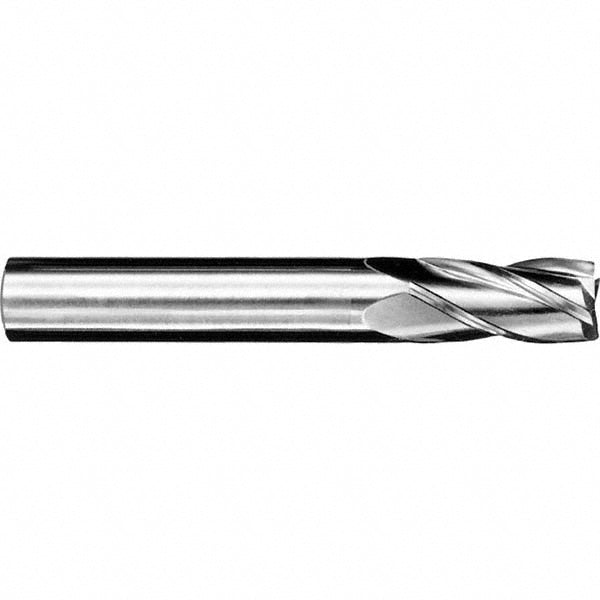

0.1378" 4-Flute Solid Carbide Square End Mill - SGS 45479

SGS

0.1378" 4-Flute Solid Carbide Square End Mill - SGS 45479

MFR# 45479Series 54M

$20.36List $26.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 45479 is a 0.1378 4-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.3937 length of cut. Series 54M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3937
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1378
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)57
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
