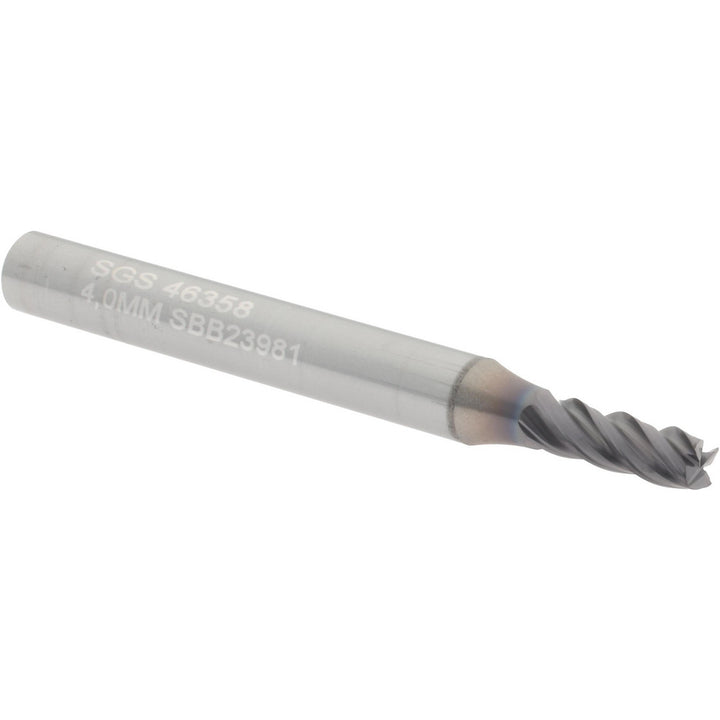

0.1575" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46358

SGS

0.1575" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46358

MFR# 46358Series Z1M

$29.32List $37.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 46358 is a 0.1575 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.4331 length of cut. Series Z1M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.4331
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1575
Mill diameter tolerance+0.000/-0.030 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
