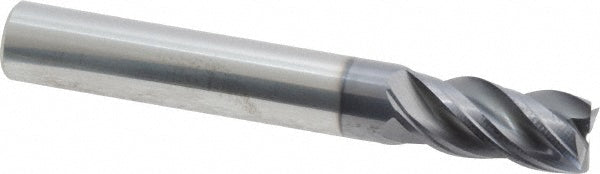

0.3937" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46364

SGS

0.3937" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46364

MFR# 46364Series Z1M

$59.97List $76.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 46364 is a 0.3937 4-flute Solid Carbide (Micrograin) square end mill. 0.8661 length of cut. Series Z1M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.8661
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3937
Mill diameter tolerance+0.000/-0.040 mm
Number of flutes4
Overall length (mm)72.00
Shank diameter (mm)10.00
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
