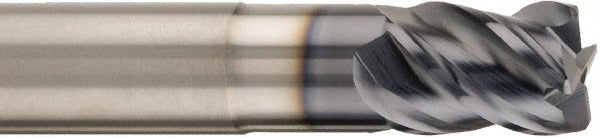

0.4724in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46566

SGS

0.4724in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46566

MFR# 46566Series ZD1M

$113.37List $145.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 46566 is a 0.4724in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. Series ZD1M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0394
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut0.5620in
Length typeShort
Material applicationCast Iron; Hard Material; Steel
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.4724in
Mill diameter tolerance-0.0508/0.0000 mm
Neck diameter (mm)11.61
Number of flutes4
Overall length (mm)83.00mm
PitchNormal
Primary workpiece materialCast Iron; Hard Material
Reach length1.3780
Secondary workpiece materialSteel
Shank diameter (mm)12.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
