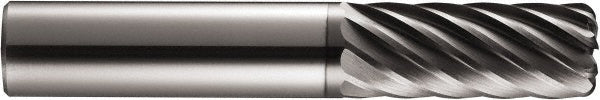

0.2362in" 7-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46627

SGS

0.2362in" 7-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46627

MFR# 46627Series 66M

$57.79List $74.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes7
MaterialSolid Carbide
CoatingTX

Description

The SGS 46627 is a 0.2362in 7-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel. Series 66M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0197
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut0.5000in
Length typeLong
Material applicationSteel
Material gradeMicrograin
Material removal typeFinishing
Mill diameter0.2362in
Mill diameter tolerance-0.0508/0.0000 mm
Number of flutes7
Overall length (mm)63.00mm
PitchClose
Primary workpiece materialSteel
Shank diameter (mm)8.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
