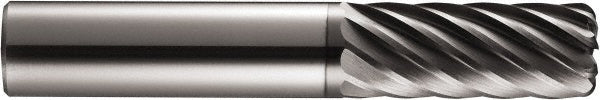

0.3150in" 7-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46629

SGS

0.3150in" 7-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46629

MFR# 46629Series 66MC

$75.56List $96.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes7
MaterialSolid Carbide
CoatingTX

Description

The SGS 46629 is a 0.3150in 7-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 66MC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0197
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut0.1870in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter0.3150in
Mill diameter tolerance-0.0508/0.0000 mm
Number of flutes7
Overall length (mm)63.00mm
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter (mm)8.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
