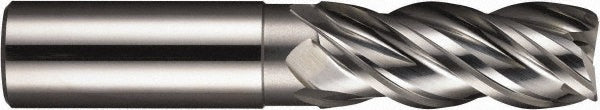

0.4724in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46829

SGS

0.4724in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46829

MFR# 46829Series ZPMC

$134.65List $172.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 46829 is a 0.4724in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series ZPMC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.1181
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut0.5000in
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.4724in
Mill diameter tolerance-0.0508/0.0000 mm
Neck diameter (mm)11.48
Number of flutes4
Overall length (mm)100.00mm
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length1.8898
Secondary workpiece materialHard Material
Shank diameter (mm)12.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
