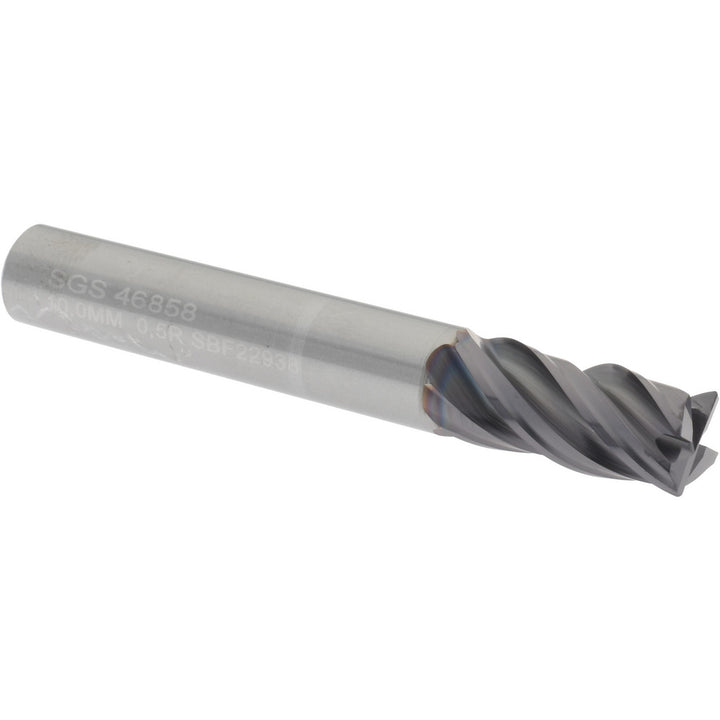

0.3937" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46858

MFR# 46858Series ZPMC

$62.60List $80.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 46858 is a 0.3937 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2-53/64 overall length. Series ZPMC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0197

Corner radius tolerance+0.00000 to -0.05000 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut0.8660

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.3937

Mill diameter tolerance-0.0406/0.0000 mm

Number of flutes4

Overall length in2-53/64

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter (mm)10.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
