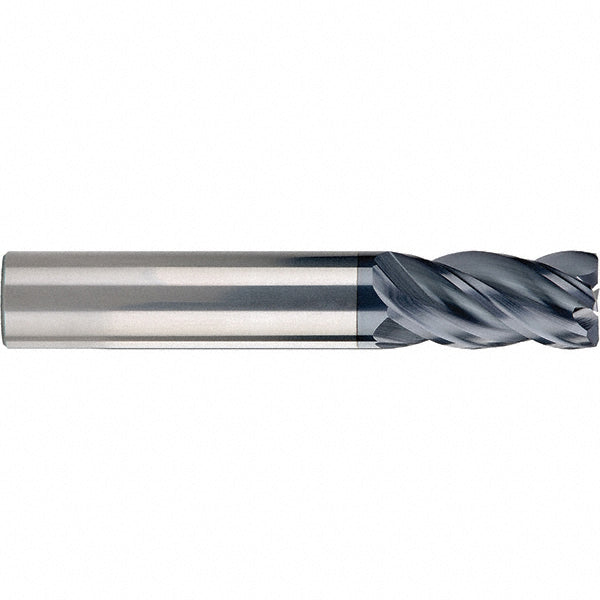

4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46873

SGS

4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 46873

MFR# 46873Series ZPMC

$37.24List $47.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 46873 is a 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series ZPMC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0040
Corner radius tolerance-0.0250 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut1.0000
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter (mm)1.00
Mill diameter tolerance-0.0120 to 0.0120 mm
Number of flutes4
Overall length (mm)57.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter (mm)6.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
