SGS

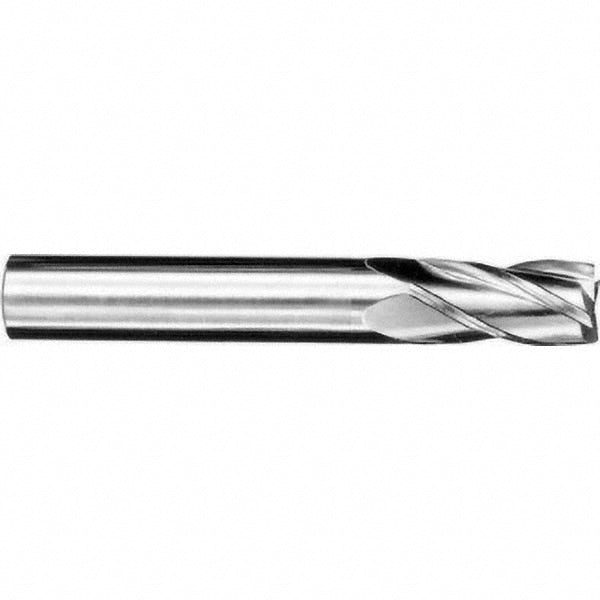

0.3150" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48511

MFR# 48511Series 1M

$33.31List $42.72 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 48511 is a 0.3150 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.7874 length of cut. Series 1M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.7874

Length typeRegular

Material gradeMicrograin

Mill diameter0.3150

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)63

Shank diameter0.315

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
