0.4331" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 48557

MFR# 48557Series 1M

$68.46List $87.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

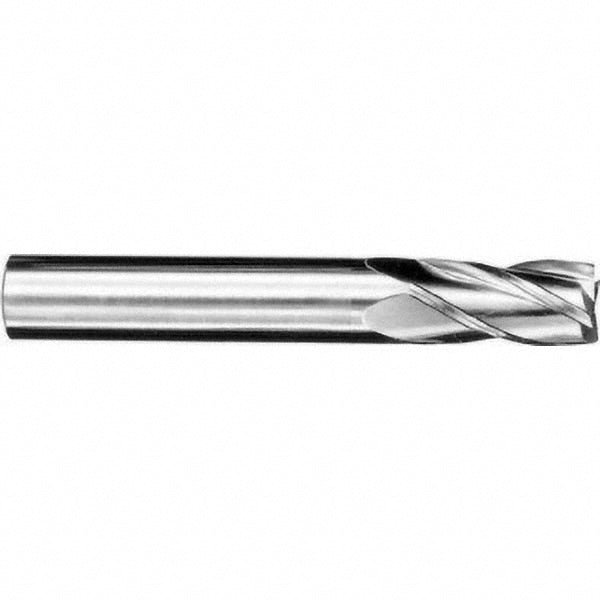

The SGS 48557 is a 0.4331 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.9843 length of cut. Series 1M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.9843

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeMicrograin

Mill diameter0.4331

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)75

Shank diameter0.4724

Shank diameter tolerance+0.000/-0.011 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
